What Is an LMR Coaxial Cable and How Does It Work?
ntroduction
In today’s connected world, having a reliable cable to transfer signals is very important. Whether it’s for your internet, mobile signal, or even your CCTV system, the type of cable you use matters. One popular cable used for strong signal transfer is the LMR coaxial cable. But what is it? How does it work? And why do so many people trust it?
What Is an LMR Coaxial Cable?
Understanding the Basics
An LMR coaxial cable is a special type of cable made to carry radio frequency (RF) signals. These signals are the same ones used for things like radios, mobile phones, Wi-Fi, GPS, and even CCTV systems.
The “LMR” part stands for a brand or type of coaxial cable that is flexible, easy to install, and good at keeping the signal strong over longer distances.
Why It’s Called “Coaxial”
The word “coaxial” means that the cable has several layers arranged around the same center axis. It usually includes:
- A center wire (carries the signal)
- An insulator (keeps the signal from leaking out)
- A metal shield (blocks outside interference)
- A plastic cover (protects the whole cable)
The LMR cable is designed in a way that reduces signal loss and prevents outside noise from messing with your signal.
How Does an LMR Coaxial Cable Work?
Sending the Signal
The center wire in the LMR cable carries the electrical signal. This could be a signal from a Wi-Fi router, a mobile tower, or even a security camera. The signal travels through the center wire while the outer layers protect it and keep it clean and strong.
Keeping the Signal Safe
The outer metal layer acts like a bodyguard. It keeps other signals and noise from getting in and disturbing the original signal. This means better sound, better video, and faster data without interruptions.
No Signal Drops
One of the best things about LMR coaxial cables is that they don’t lose much signal, even over long distances. Some cheaper cables lose a lot of signal as it travels, but LMR cables are built to keep it strong.
What Are the Main Features of LMR Coaxial Cable?
1. Low Signal Loss
LMR cables are designed to keep the signal strong from one end to the other. This is very helpful for long cable runs.
2. Flexible and Easy to Install
Unlike older, stiff cables, LMR cables are soft and bend easily. This makes installation simple, even in tight spaces.
3. Weather-Resistant
LMR cables come with a tough outer layer that protects them from rain, sun, and heat. That’s why many people use them outdoors.
4. Wide Frequency Range
These cables work with many types of systems, including mobile networks, Wi-Fi, GPS, and security systems. They can handle different frequencies without losing quality.

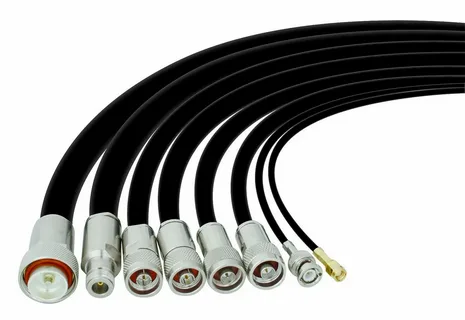

What Are the Common Types of LMR Coaxial Cables?
LMR cables come in different sizes and types. Each one is made for a specific use. Here are the most common ones:
▶ LMR-100
- Thin and lightweight
- Best for short runs or small devices
▶ LMR-195
- Used for short to medium cable runs
- Often found in GPS systems and Wi-Fi routers
▶ LMR-240
- Stronger and thicker than LMR-195
- Good for medium distances and outdoor use
▶ LMR-400
- Popular for long runs
- Low signal loss and strong protection
- Often used in CCTV and antenna systems
▶ LMR-600
- Thicker and even more powerful
- Perfect for very long cable runs and heavy-duty use
Where Is LMR Coaxial Cable Used?
Home and Office Internet
LMR cables can connect your Wi-Fi antennas and routers for better signal performance.
GPS and Navigation
Cars, boats, and tracking systems often use LMR cables for GPS antennas.
CCTV and Security Systems
If you have security cameras, especially outdoors, LMR-400 is a great choice to keep your video clear and stable.
Mobile Signal Boosters
To get better mobile signal indoors, many people install signal boosters with LMR coaxial cables.
Radio and Ham Operators
Amateur radio lovers (also called “hams”) use LMR cables for their antennas to reduce noise and improve sound quality.
How to Choose the Right LMR Coaxial Cable
Picking the right LMR cable depends on what you’re using it for. Here are a few tips:
Think About the Distance
If you’re running the cable over a long distance, you should go with LMR-400 or LMR-600. They keep the signal strong even over many meters.
Look at the Frequency
Different devices use different frequencies. Make sure the cable supports the frequency your system needs.
Indoor or Outdoor?
For outdoor use, choose a cable with strong weather protection. LMR cables with UV-resistant jackets are a good choice.
Check the Connectors
Make sure your cable matches the connector types on your devices. Common connectors are N-Type, SMA, and TNC.
How to Install an LMR Coaxial Cable
Installing an LMR cable is not too hard if you follow the steps carefully.
Step 1 – Measure and Cut
Measure the distance between your devices and cut the cable accordingly.
Step 2 – Strip the Ends
Use a coaxial cable stripper to remove the outer jacket and get to the core wire.
Step 3 – Attach the Connector
Connect the proper connector to each end of the cable. You may need crimping tools to secure it tightly.
Step 4 – Connect the Devices
Attach one end of the cable to the antenna or signal source and the other end to the device (like a router or camera).
Step 5 – Test the Signal
After setting everything up, test to make sure your device is receiving a strong and clean signal.
Tips to Keep Your LMR Coaxial Cable in Good Shape
- Don’t bend the cable too much – gentle curves are fine
- Keep it away from sharp objects and heat sources
- Use cable clips or ties to keep it in place
- If used outdoors, make sure the connectors are also weatherproof
- Clean the connectors once in a while for the best performance
Conclusion
An LMR coaxial cable is a smart choice if you want a reliable, strong, and long-lasting cable for carrying signals. Whether you are setting up a Wi-Fi system, GPS tracker, CCTV, or mobile signal booster, this cable makes a big difference in performance.
Thanks to its strong build, low signal loss, and easy installation, LMR cables are trusted by both professionals and home users around the world.
